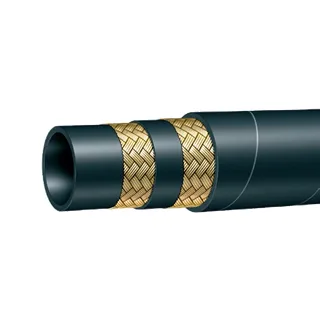

Prospector Hot Oiler

General Details
Product # SAP # ID OD Max. WP Min.
Bend
Radius
 Min.
Burst
Pressure
Weight
in. mm in. mm psi MPa in. mm psi MPa lbs./ft.
Hot Oiler 20739314 1.5 38.0 2.16 54.8 2500 17.2 20.0 508 8125 56.0 1.64
Application

Static pressure, hot oiler applications. Designed specifically to handle the transfer of hot oil at 275F continuous, 300F intermittent to clear the paraffin around the casing to help start the flow of oil to the surface.

Meets Flame Resistance USMSHA Designation

Featured

Tube:

Black, oil resistant, synthetic rubber.

Reinforcement:

Two braids of high-tensile steel wire.

Cover:

Two braids of high-tensile steel wire.

Temperature:

-40°F to +275°F (-40°C to +135°C)

Branding:

Continental ContiTech HOT OILER

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.
