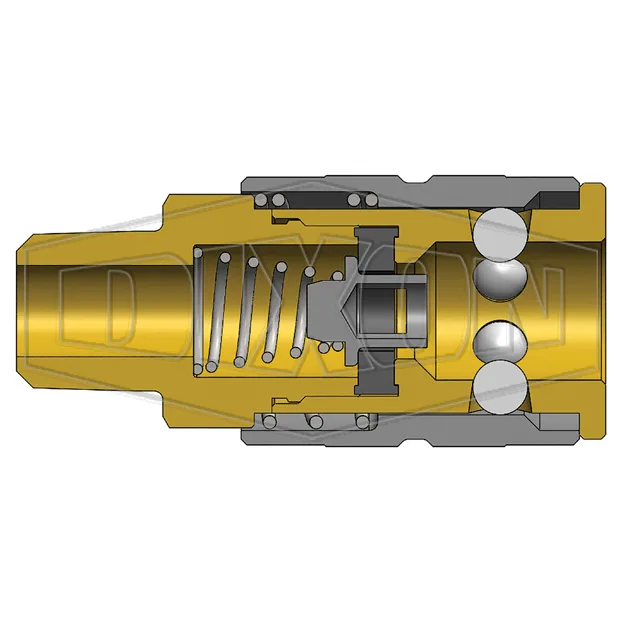

F-Series Pneumatic Manual Male Thread Coupler
Specifications
- Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
- Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
- Steel sleeve and steel tubular valve
Compatibility & Interchange Data
- Foster 3, 4, 5 and 6 Series
- Parker 20-Series Manual Interchange
- Hansen 1000, 400 and 500
Details
|
Part Number
|
Length
|
Thread Size
|
Material
|
Body Size
|
Thread
|
|---|---|---|---|---|---|
| 2FBM1-B | 1.97″ | 1/8″ | Brass | 1/4″ | BSPT |
| 2FBM2-B | 2.04″ (51.8mm) | 1/4″ | Brass | 1/4″ | BSPT |
| 2FBM3-B | 2.08″ (52.8mm) | 3/8″ | Brass | 1/4″ | BSPT |
| 2FM1-B | 1.97″ (50.0mm) | 1/8″ | Brass | 1/4″ | NPTF |
| 2FM1-S | 1.97″ (50.0mm) | 1/8″ | 303 Stainless Steel | 1/4″ | NPTF |
| 2FM2 | 2.04″ (51.8mm) | 1/4″ | Steel | 1/4″ | NPTF |
| 2FM2-B | 2.04″ (51.8mm) | 1/4″ | Brass | 1/4″ | NPTF |
| 2FM2-S | 2.04″ (51.8mm) | 1/4″ | 303 Stainless Steel | 1/4″ | NPTF |
| 2FM3-B | 2.08″ (52.8mm) | 3/8″ | Brass | 1/4″ | NPTF |
| 2FM3-S | 2.08″ (52.8mm) | 3/8″ | 303 Stainless Steel | 1/4″ | NPTF |
| 3FBM3 | 2.46″ (62.5mm) | 3/8″ | Steel | 3/8″ | BSPT |
| 3FM2 | 2.45″ (62.2mm) | 1/4″ | Steel | 3/8″ | NPTF |
| 3FM3 | 2.46″ (62.5mm) | 3/8″ | Steel | 3/8″ | NPTF |
| 3FM3-S | 2.46″ (62.5mm) | 3/8″ | 303 Stainless Steel | 3/8″ | NPTF |
| 3FM4 | 2.55″ (64.8mm) | 1/2″ | Steel | 3/8″ | NPTF |
| 4FBM4 | 3.07″ (78.0mm) | 1/2″ | Steel | 1/2″ | BSPT |
| 4FM3 | 2.97″ (75.4mm) | 3/8″ | Steel | 1/2″ | NPTF |
| 4FM4 | 3.07″ (78.0mm) | 1/2″ | Steel | 1/2″ | NPTF |
| 4FM4-S | 3.07″ (78.0mm) | 1/2″ | 303 Stainless Steel | 1/2″ | NPTF |
| 4FM6 | 3.12″ (79.2mm) | 3/4″ | Steel | 1/2″ | NPTF |
