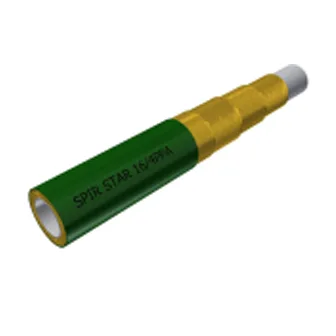

Spir Star – Hose Type 16/4PPA®

General Details
Ø ID Ø OD Working Pressure Burst Pressure Bend Radius Weight Insert ID Sleeve
OD
16 mm 25,5 mm 690 bar 2.760 bar 400 mm 1,082 kg/m 10,5 mm 32,7 mm
0.63 inch 1 inch 10.000 psi 40.000 psi 15.75 inch 0.727 lbs/ft 0.41 inch 1.29 inch
Application
Oil & Gas methanol service (oil rigs, distribution panels, umbilicals), jumper/ subsea well control, chemical injection, nitrogen service, Gaseous media handling
Hydraulics hydraulic tools (instrumentation packages for gauges, control of service equipment, hydraulic jacks, hydraulic tools)
Details
Inner Core: Polyvinylidenfluoride (PVDF)
Pressure Support: 4 layers of high-tensile steel wire
Outer Cover: Polyamide (PA)
Color: Dark green
Temperature: -20°C to +80°C [-4°F to 176°F]
